Comprehensive CFD
Simulations for Design,
Optimization and Reverse
Engineering
|

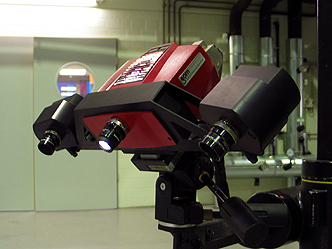

3D Scanning of
Equipment Using Atos
System
In many projects
with the target
of reverse
engineering and
design knowledge
production of
equipment, 3D
scanning using
Atos system can
create a precise
cloud point (5
micron) and
eventually 3D solid
model. Arya Alborz has
utilized this system for
solid model creation of
various equipment with
different scales and the
accuracy of this system
based on the results of
3D modeling and CFD
simulations is
completely
proved. |
 |
CAD Modeling
The presence of
professional experts in
CAD modeling in Arya
Alborz Company has
created the best
capability of 3D
modeling with the
consideration of
suitable mesh
generation. Over than 12
years of using CATIA,
SOLIDWORK and GAMBIT
software and deep
understanding of the
tools, best experience
in this field of
engineering has been
produced.
Mesh Generation
As the fluid equations
are solved for the
elements individually,
professional mesh
generation has
significant effect on
the accuracy of the
results. Identifying the
nature of the problems
and choosing the
required elements type
and mesh generation such
as structured mesh with
reasonable growing
factor for precise
boundary layer
simulation to achieve
rational results are of
unique capabilities in Arya Alborz Company.
Over than 12 years of
using ICEM and GAMBIT
has produced special
ability for structured
and hybrid mesh

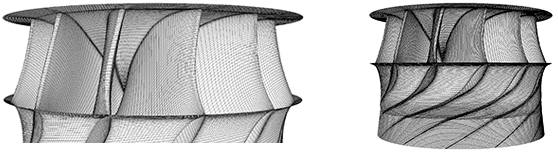

generations. A sample of
structured mesh
generated for a Francis
turbine runner is
presented.
 |
CFD Simulation
This company has proved
its capability in more
than 50 successful
projects in a wide range
of industrial
applications. Over than
12 years of using ANSYS-FLUENT
software and deep
insight through all tools
and UDF capabilities,
the possibility of
entrance to all fields
of industries has
created.
the possibility of
entrance to all fields
of industries. Utilizing
high speed parallel
computers, the
simulation of
complicated problems has
become possible in Arya
Alborz Company. Brief
activities are mentioned
below.
UDF development for
dynamic mesh simulation.
Combustion and reactions
simulation.
All types of rotating
equipment simulation for
design, optimization and
reverse engineering.
Multiphase flow
simulation.
Fluid flow and heat
transfer simulation for
design, optimization and
reverse engineering in a
wide range of
applications.
Professional Post
Processing
Post processing obtained
during the simulation of
unsteady problems and at
the end of steady
problems can produce a
deep insight on the
nature of the phenomena
occurring that helps the
designer for a better
understanding of the
problem. Using different
outputs such as curves,
contours, vectors and
animations can clarify
lots of wind tunnel
tests obscurities.
Considering the required
convergence due to the
nature of the problem
and obtaining detailed
outputs, are some of the
reasons for Arya Alborz
professional engineering
team success.
|
